The PULSATING HIGH GRADIENT MAGNETIC SEPARATION MACHINERY with most
advanced technology and best performance in the worldwide. Whole
equipment have swivel vertical rotation and back flush mineral ores
functions, following with high frequency vibration motor. It has
higher enrichment ratio and can adapt different particle size and
concentration and grade of mineral ores. And also have advantages
of reliable working and easy operation and maintenance. The

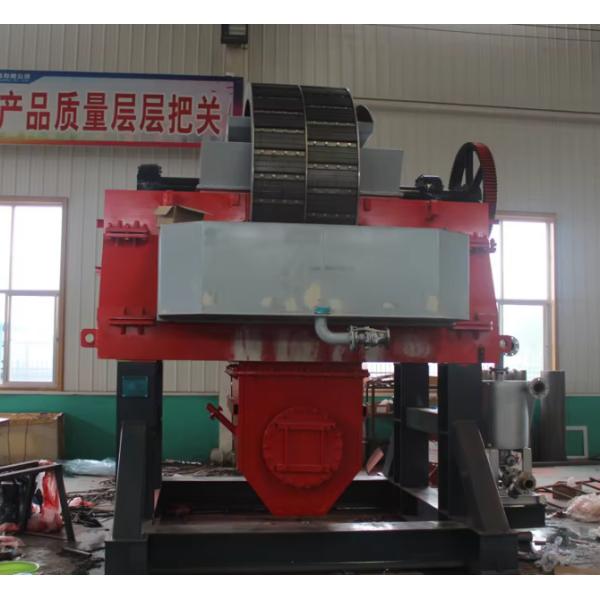

vertical ring high gradient magnetic separator is composed of
frame, yoke, rotating ring, ore hopper, flushing device,
concentrate hopper, medium box, tailings tank, oil cooling
excitation coil, oil cooling system and control system. The core
magnetic circuit is designed by computer simulation, with high
magnetic field intensity and large gradient.

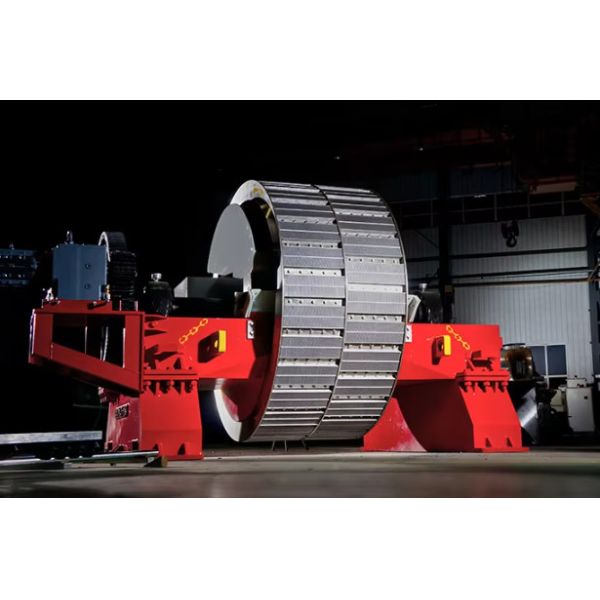

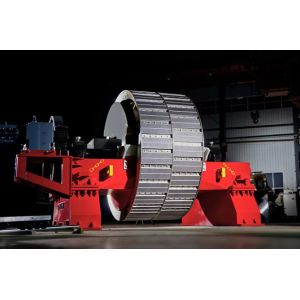

PULSATING HIGH GRADIENT MAGNETIC SEPARATION MACHINERY ,Magnetic
yoke fixed on the machine frame, which generate the strong magnetic
field together with exciting coil. Rotary ring is in the clockwise
drived by the rotary device, and goes through the magnetic field
slowly. There are many separation boxes on the outer circle of the
rotary ring , there is the multi-layer magnetic medium which is
made of magnetic material inside the separation box. When the
rotary ring goes through the magnetic filed, it would be
magnetized, and formed the high gradient magnetic field. In the
mineral processing, the mine slurry goes into the rotary ring along
with the gap of the magnetic pole, and the magnetic particle would
be attracted in the magnetic medium surface, revolving to the
non-magnetic area. The magnetic particle would be put into the fine
tank, and the nonmagnetic material goes into the tailing tank along
the lower magnetic yoke gap.
1. Updating Ferrous Metals: Martite, Hematite, Siderite, Chromite,
Ilmenite, Manganese, Etc.
2. Separating Non-Ferrous Metals: Wolframite and Quartz, Pyrrhotite
and Cassiterite, Wolframite and Cassiterite, Limonite Purifying,
Scheelite, Wolframite and Garnet, Etc.
3. Recovering Rare Earth: Tantalum and Niobium, Lepidomelane,
Monazite, Etc.
4. Brightening Non Metals: Quartz, Feldspar And Kaolin for
Ceramics, Sillimanite, Cassiterite, Andalusite, Kyanite for
Refractory, and Separating Impurities From Hornblende, Mica,
Tourmaline, Garnet, Etc,
Technical data
Model
Part | DLS-50 | DLS-75 | DLS-100 | DLS-125 | DLS-150 | DLS-175 | DLS-200 | DLS-250 |
Ring diameter (mm) | 500 | 750 | 1000 | 1250 | 1500 | 1750 | 2000 | 2500 |
| Particles size mm (-200 mesh) | -1.0 (30-100) | -1.0 (30-100) | -1.3 (30~100) | -1.3 (30~100) | -1.3 (30~100) | -1.3 (30~100) | -1.3 (30~100) | -1.3 (30~100) |
Slurry density (%) | 10~40 | 10~40 | 10~40 | 10~40 | 10~40 | 10~40 | 10~40 | 10~40 |
Slurry throughput (m3/h) | 0.5~1.0 | 1.0~2.0 | 12.5~20 | 20~50 | 50~100 | 75~150 | 100~200 | 180~450 |
Handling capacity (t/h) | 0.05~0.25 | 0.1~0.5 | 4~7 | 10~18 | 20~30 | 30~50 | 50~80 | 80~150 |
| Rated back ground Field intensity (T) | 0~1.1 | 0~1.1 | 0~1.1 | 0~1.1 | 0~1.1 | 0~1.1 | 0~1.1 | 0~1.1 |
| Energizing current (A) | 0~1200 | 0~850 | 0~650 | 0~850 | 0~950 | 0~1200 | 0~1200 | 0~1400 |
| Energizing voltage (V) | 0~8.3 | 0~13 | 0~26.5 | 0~23 | 0~28 | 0~31 | 0~35 | 0~45 |
| Energizing power (KW) | 0~10 | 0~11 | 0~17 | 0~19 | 0~27 | 0~37 | 0~43 | 0~63 |
| Ring motor power (KW) | 0.37 | 0.55 | 1.5 | 2.2 | 4 | 4 | 5.5 | 11 |
| Vibration motor power (KW) | 0.55 | 0.75 | 2.2 | 2.2 | 4 | 4 | 7.5 | 11 |
| Water supply pressure (MPa) | 0.1~0.2 | 0.1~0.2 | 0.2~0.4 | 0.15~0.3 | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 |
| Water consumption (m3/h) | 0.75~1.5 | 5~8 | 10~20 | 30~45 | 60~90 | 80~120 | 100~150 | 200~300 |
| Cooling water (m3/h) | 1.5~2 | 1.5~2 | 2~2.5 | 2.5~3 | 3~4 | 4~5 | 5~6 | 6~7 |
| Main frame weight (t) | 1.5 | 3 | 6 | 14 | 20 | 32 | 48 | 105 |
Overall dimension (mm) | 1900*1580*1320 | 2000*1360*1680 | 2700*2200*2560 | 3045*2320*2640 | 3400*3060*3150 | 3900*3400*3800 | 4290*3610*4320 | 5800*5000*5400 |
The above-mentioned dried minerals is metallic minerals, and the
handling capacity of non-metallic minerals is half of metallic
minerals.More details, please contact us directly.
Silica Processing Plant.pdf
Advantages
1. Vertical rotating ring, high separation efficiency;
2. Unique magnetic medium, high induction magnetic field;
3. Good heat dissipation effect, more stable magnetic field;
4. Wide range of application, complete machine reliable maintenance
free;
5. The coil has a special structure and can operate in severe
conditions;
6. Special cooling method, coil is not easy to block, long service
life.
