    Self Cleaning Permanent Magnetic Separator

    Ask Lasest Price
    Brand Name : Hengyang
    Model Number : HC-500
    Certification : ISO9001
    Price : 56200-76100
    Payment Terms : T/T
    Supply Ability : 270 sets/month
    Delivery Time : 20-40 days
    • Product Details
    • Company Profile

    Self Cleaning Permanent Magnetic Separator

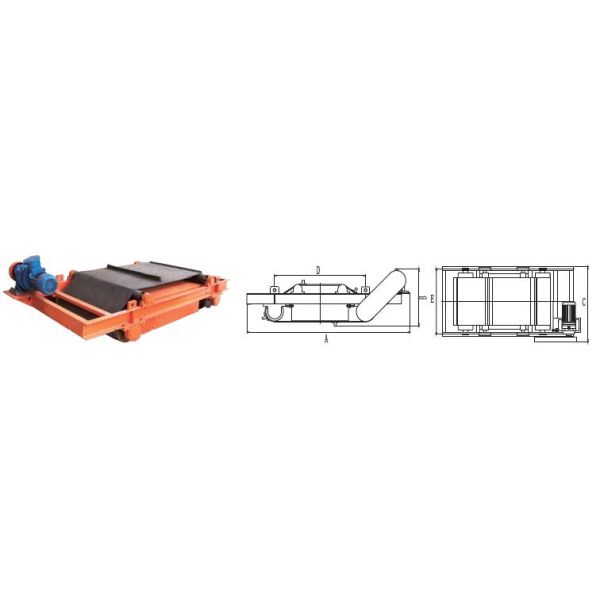

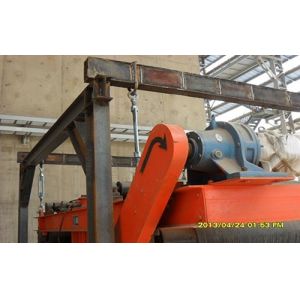

    Permanent Magnet Self-Unloading Iron Ore Remover Iron Cleaning Iron used on belt conveyor Recycling Drum Roller Separator With Permanent Magnet permanent separating coal dressing equipment is designed for long term operating shift provided with self-discharge function and semi-sphere shaped magnetic field. Installed with continuous operating trump iron discharging conveyor which helps to throw the attracted magnetic material into the iron collection tray. It is suitable for removing the magnetic iron particles from the thicker bed of the material and material under bigger granularity such as ores, coals, hard cokes, limestone and etc.

    ModelBelt width (mm)Erection height (mm)Mass (kg)Driven power (kw)
    RCYD-66502001270
    580
    2.2/
    RCYD-88002501800
    1340
    2.2/
    RCYD-1010003002500
    2380
    2.2/
    RCYD-1212003504000
    3910
    4/
    RCYD-1414004005800
    5670
    4/
    RCYD-1616004507500
    6820
    4/
    RCYD-1818005080005.5
    RCYD-202000550100005.5

    Others:

    Product nameMagnetic separator
    MaterialCarbon steel ,304;316L
    Design pressure0.6mpa 1.0mpa 2.0mpa
    UsingMining industry
    Gasket materialSilicone/EPDM/Viton/PTFE
    Width and lengthdifferent size
    Connection typeTri clamp;Union; Flange
    We accept customized or OEM filter housings
