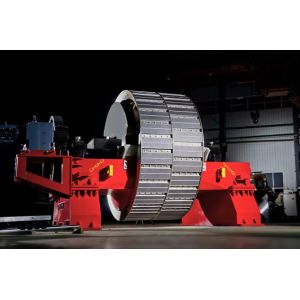

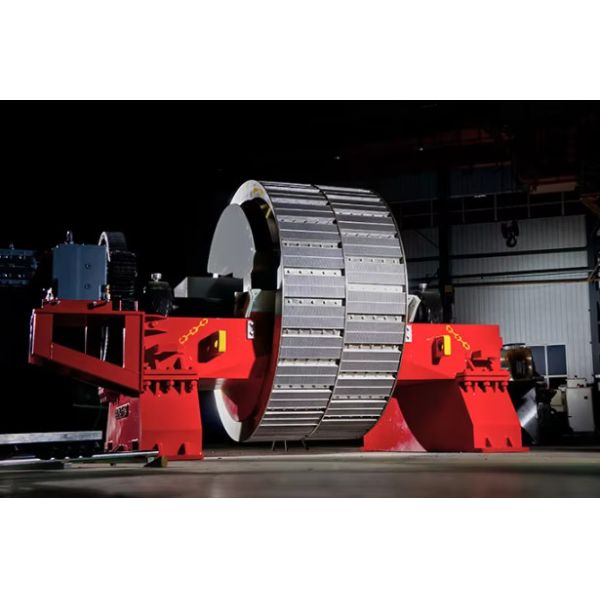

DLS Series high gradient magnetic separator is a new product
Supplied by Hengyang Industry. It combines the characteristics of
international advanced high intensity magnetic separators, which is
so far the high intensity magnetic separator of best performance
and most advanced technology. This product utilizes vertical ring
rotation, pulsating beneficiation and high frequency vibrator, and
it has no magnetic medium jam problem in flat ring high intensity
magnetic separator and flat ring high gradient magnetic separator.
It has the advantages of large beneficiation ratio, high security
and convenient operation etc. This product realizes both high
beneficiation ratio and high recycle ratio in separating weak
magnetic minerals.
1 Application field
1. Updating Ferrous Metals: Martite, Hematite, Siderite, Chromite,
Ilmenite, Manganese, Etc.
2. Separating Non-Ferrous Metals: Wolframite and Quartz, Pyrrhotite
and Cassiterite, Wolframite and Cassiterite, Limonite Purifying,
Scheelite, Wolframite and Garnet, Etc.
3. Recovering Rare Earth: Tantalum and Niobium, Lepidomelane,
Monazite, Etc.
4. Brightening Non Metals: Quartz, Feldspar And Kaolin for
Ceramics, Sillimanite, Cassiterite, Andalusite, Kyanite for
Refractory, and Separating Impurities From Hornblende, Mica,
Tourmaline, Garnet, Etc,
2 Technical features
1. Vertical Ring Rotation & Pulsating Beneficiation
2. High Frequency Vibration Mechanism
3. Wide Range of Feed Particle Size
4. Multi-Gradient Matrixes & Liquid Level Control System.
These technologies improve the grade of magnetic concentrate and
recovery.
5. Frequency Conversion Step-less Adjustment for Rotary Speed &
Vibrating Frequency.
6. No Stepper Phenomenon of Rotary Rings
3 Technical data
Model
Part | DLS-50 | DLS-75 | DLS-100 | DLS-125 | DLS-150 | DLS-175 | DLS-200 | DLS-250 |
Ring diameter (mm) | 500 | 750 | 1000 | 1250 | 1500 | 1750 | 2000 | 2500 |
| Particles size mm (-200 mesh) | -1.0 (30-100) | -1.0 (30-100) | -1.3 (30~100) | -1.3 (30~100) | -1.3 (30~100) | -1.3 (30~100) | -1.3 (30~100) | -1.3 (30~100) |
Slurry density (%) | 10~40 | 10~40 | 10~40 | 10~40 | 10~40 | 10~40 | 10~40 | 10~40 |
Slurry throughput (m3/h) | 0.5~1.0 | 1.0~2.0 | 12.5~20 | 20~50 | 50~100 | 75~150 | 100~200 | 180~450 |
Handling capacity (t/h) | 0.05~0.25 | 0.1~0.5 | 4~7 | 10~18 | 20~30 | 30~50 | 50~80 | 80~150 |
| Rated back ground Field intensity (T) | 0~1.1 | 0~1.1 | 0~1.1 | 0~1.1 | 0~1.1 | 0~1.1 | 0~1.1 | 0~1.1 |
| Energizing current (A) | 0~1200 | 0~850 | 0~650 | 0~850 | 0~950 | 0~1200 | 0~1200 | 0~1400 |
| Energizing voltage (V) | 0~8.3 | 0~13 | 0~26.5 | 0~23 | 0~28 | 0~31 | 0~35 | 0~45 |
| Energizing power (KW) | 0~10 | 0~11 | 0~17 | 0~19 | 0~27 | 0~37 | 0~43 | 0~63 |
| Ring motor power (KW) | 0.37 | 0.55 | 1.5 | 2.2 | 4 | 4 | 5.5 | 11 |
| Vibration motor power (KW) | 0.55 | 0.75 | 2.2 | 2.2 | 4 | 4 | 7.5 | 11 |
| Water supply pressure (MPa) | 0.1~0.2 | 0.1~0.2 | 0.2~0.4 | 0.15~0.3 | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 |
| Water consumption (m3/h) | 0.75~1.5 | 5~8 | 10~20 | 30~45 | 60~90 | 80~120 | 100~150 | 200~300 |
| Cooling water (m3/h) | 1.5~2 | 1.5~2 | 2~2.5 | 2.5~3 | 3~4 | 4~5 | 5~6 | 6~7 |
| Main frame weight (t) | 1.5 | 3 | 6 | 14 | 20 | 32 | 48 | 105 |
Overall dimension (mm) | 1900*1580*1320 | 2000*1360*1680 | 2700*2200*2560 | 3045*2320*2640 | 3400*3060*3150 | 3900*3400*3800 | 4290*3610*4320 | 5800*5000*5400 |
The above-mentioned dried minerals is metallic minerals, and the
handling capacity of non-metallic minerals is half of metallic
minerals.More details, please contact us directly.
