Hengyang Industry can help you produce and install whole plant of
Calcium carbonate plant:
Calcium carbonate Crushing Plant
Calcium carbonate Drying Plant
Calcium carbonate Calcination Plant
Calcium carbonate Packing and Grinding Production Lines
Non-metallic Mining Processing Lines.pdf
Limestone, which is primarily calcium carbonate, is a sedimentary
rock made from the minerals calcite or aragonite. A large portion
of limestone is made from the skeletal remains of sea creatures and
organisms. Ground Calcium Carbonate (GCC) differs from Precipitated
Calcium Carbonate (PCC) in that the GCC is formed directly from
grinding limestone rock into a powder, while PCC is chemically
produced and precipitated out as powder.
Quarried stone normally is delivered to the processing plant by
truck and is dumped into a bin. The feeder or screens separate
large boulders from finer rocks that do not require primary
crushing, thus reducing the load to the primary crusher.

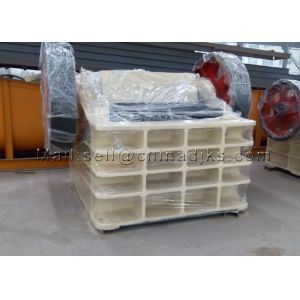

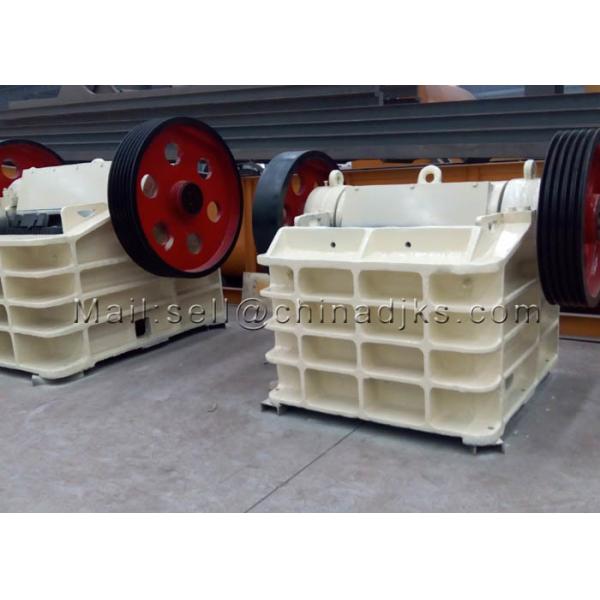

Jaw, impactor, or gyratory crushers are usually used for initial
reduction. The crusher product, normally 7.5 to 30 centimeters (3
to 12 inches) in diameter, and the grizzly throughs (undersize
material) are discharged onto a belt conveyor and usually are
conveyed to a surge pile for temporary storage or are sold as
coarse aggregates. The stone from the surge pile is conveyed to a
vibrating inclined screen called the scalping screen. This unit
separates oversized rock from the smaller stone. The undersized
material from the scalping screen is considered to be a product
stream and is transported to a storage pile and sold as base
material.
The stone that is too large to pass through the top deck of the
scalping screen is processed in the secondary crusher. Cone
crushers are commonly used for secondary crushing (although impact
crushers are sometimes used), which typically reduces material to
about 2.5 to 10 centimeters (1 to 4 inches). The material
(throughs) from the second level of the screen bypasses the
secondary crusher because it is sufficiently small for the last
crushing step. The output from the secondary crusher and the
throughs from the secondary screen are transported by conveyor to
the tertiary circuit, which includes a sizing screen and a tertiary
crusher. Tertiary crushing is usually performed using cone crushers
or other types of impactor crushers. Oversize material from the top
deck of the sizing screen is fed to the tertiary crusher. The
tertiary crusher output, which is typically about 0.50 to 2.5
centimeters (3/16th to 1 inch), is returned to the sizing screen.
Various product streams with different size gradations are
separated in the screening operation. The products are conveyed or
trucked directly to finished product bins, to open area stock
piles, or to other processing systems such as washing, air
separators, and screens and classifiers (for the production of
manufactured sand).
