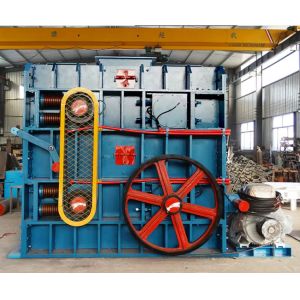

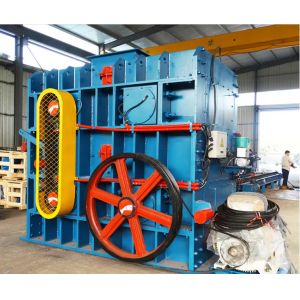

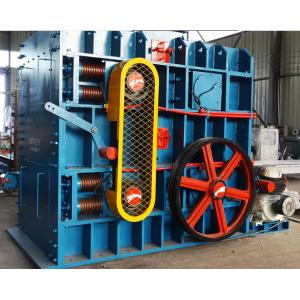

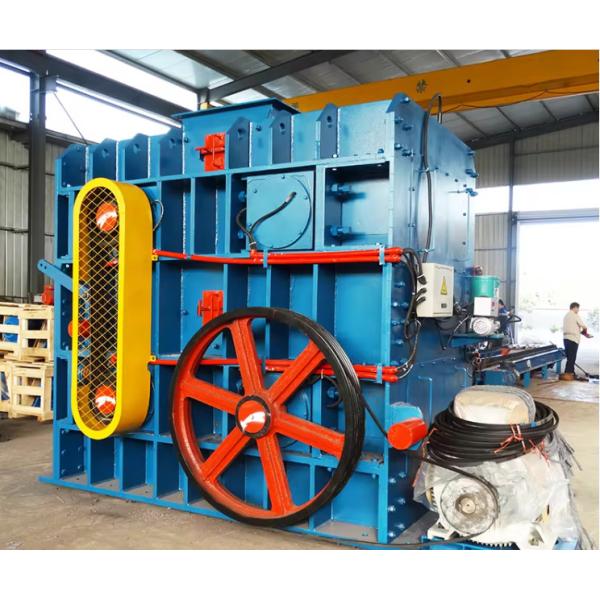

Anthracite Coal Block Crushing 4 Teeth Roller Fine Crusher

Ask Lasest Price
Brand Name :	Hengyang
Model Number :	HC-4701
Certification :	ISO9001
Price :	57000-356400
Payment Terms :	T/T
Supply Ability :	270 sets/month
Delivery Time :	20-40 days

Add to Cart

Product Details
Company Profile

Anthracite Coal Block Crushing 4 Teeth Roller Fine Crusher

Four roll crusher introduction:
Four roll crusher configuration four crushing roller, according to user requirements for crushing granularity, It is divided into four roll two step broken and four roll three step broken of two kinds of models.

A Four roll two step broken

Four roll two step broken is general four roll crusher, roller surface is surfacing roll surface or flat roll surface, according to the size required to select a combination of roller, the machine is applicable to 60 mesh -5mm crushing operations, such as:manufacturing coke powder in steel industries; produce pulverized coal coking in coking industry; produce quartz sand in quartz industry; produce iron powder in iron ore industry etc., or similar to the above crushing occasions.B Four roll three step broken

Four roll three step broken of roll surface can be choosed for surfacing roll surface and flat roll surface, according to the size required to select a combination,It is suitable for 100 mesh-3mm crushing operations, such as : the production of quartz sand,fine iron powder in mining industry,broken potassium feldspar, albite in ceramic industry; manufacture of stone powder for boiler desulfurization in thermoelectric industry; manufacturing slag powder, coal powder in cement industry; manufacturing gypsum powder
in building industry; broken all kinds of chemical raw materials in chemical industry, etc., or similar to above broken occasions.

According to user requirements there are the belt drive and coupling drive (hard links). This drive motor can be refited to diesel or gasoline machine according to user requirements.

Model	Feed siz(≤mm)	Discharge size (≤mm)	Processing capacity (t/h)	Motor power (kW)
4PG0404	≤25	0.1-5	3-30	11	11
4PG0605	≤40	0.1-5	5-70	15	15
4PG0608	≤40	0.1-5	8-90	18.5	18.5
4PG0809	≤60	0.1-5	12-120	22	22
4PG0812	≤60	0.1-5	20-180	37	37
4PG1012	≤80	0.1-5	30-220	45	45
4PG1212	≤90	0.1-5	45-320	75	75
4PG1216	≤90	0.1-5	55-400	90	90
4PG1218	≤90	0.1-5	70-500	110	132
