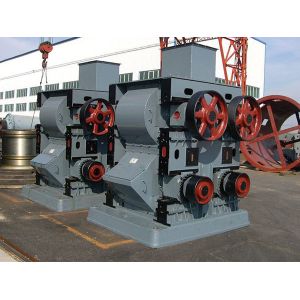

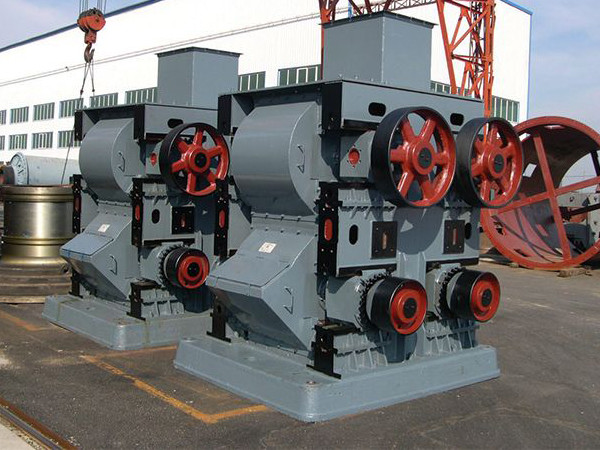

The 4PG series of four tooth-roller crusher is a new model of
crushing machine which is developed for the fluidized bed boiler in
power plant and coal handling system in washery. It can be used in
industries such as metallurgy, chemical, mine and building material
to crusher non-metal material with its compressive strength between
50- 110MPa, especially for crushing fine coal, brown coal and all
kinds of raw coal containing coal gauge less than 70%.
Advantages and features
- High efficiency, safety, energy-saving, environmental-protecting,
high reduction ratio;
- The special model of machine for power plant can ensure it is 90%
that discharging size is less than 10mm.
- The frame adopts box-welding fast dismount structure, which could
reduce the cost of maintaining.
- The toothed plate is alloy steel covered with wearable layer by
surfacing which could ensure the longer service life of 6000 hours.
Toothed plates are inset one by one so that plates are easily
changed.
- The machine is equipped with hydraulic protective device to protect
the machine. It is safe and reliable.
- Less noises, less vibration, less dust, adjustable discharging
size, small location and easier maintenance.
- It adopts hydraulic auto-withdrawing device and dust cleaning
device which can prevent damages on tooth roller from non-iron
alloy cake objects, hard rock including also wood and soft objects.
Order notes
1. The equipment is supplied as right-installed generally. Please
specify in the contract if it needs to be installed at left.
2.Material characteristics, feeding size and discharging size
should be presented in the contract.
3.Lubrication system is usually supplied with nipples mode. Please
specify in the contract if centralized lubrication and electrical
lubrication are required.
4.Standard configuration does not contain the electrical control.
If needed, please specify in the contract.

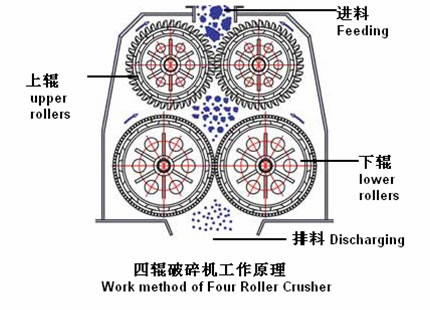

New technology double teeth roller crusher with best service
composed by rollers which rotate toward each other , material
directly falls into for the size in accordance with two teeth roll
gap, exceed the gap's material are crushed by rollers of splitting,
breaking, and striking then falls to meet the granularity's
requirement. Relative roller differential operation can clear up
the slot residual materials, all of this avoidance the material's
repeated crushing, without gluing and plugging
Teeth roller coal crusher machine with 100% non gluing and plugging
adopts double protection of electrical and mechanical, electrical
control cabinet is equipped with PLC programmable controller with
chain safeguard function, which can realize local control and
central control room manual / automatic control, so which is the
ideal crusher for heating and power supply.
Teeth Types:
Technical Details
Model | Feed siz(≤mm) | Discharge size (≤mm) | Processing capacity
(t/h) | Motor power (kW) |
4PG0404 | ≤25 | 0.1-5 | 3-30 | 11 | 11 |
4PG0605 | ≤40 | 0.1-5 | 5-70 | 15 | 15 |
4PG0608 | ≤40 | 0.1-5 | 8-90 | 18.5 | 18.5 |
4PG0809 | ≤60 | 0.1-5 | 12-120 | 22 | 22 |
4PG0812 | ≤60 | 0.1-5 | 20-180 | 37 | 37 |
4PG1012 | ≤80 | 0.1-5 | 30-220 | 45 | 45 |
4PG1212 | ≤90 | 0.1-5 | 45-320 | 75 | 75 |
4PG1216 | ≤90 | 0.1-5 | 55-400 | 90 | 90 |
4PG1218 | ≤90 | 0.1-5 | 70-500 | 110 | 132 |
