LHL Jet Mill 10-2000kg/h Stainless Steel Waste Processing

Ask Lasest Price
Brand Name :	Hengyang
Model Number :	HC401
Certification :	ISO9001
Price :	5600-750000
Payment Terms :	T/T
Supply Ability :	300sets/month
Delivery Time :	20-40 days

Add to Cart

Product Details
Company Profile

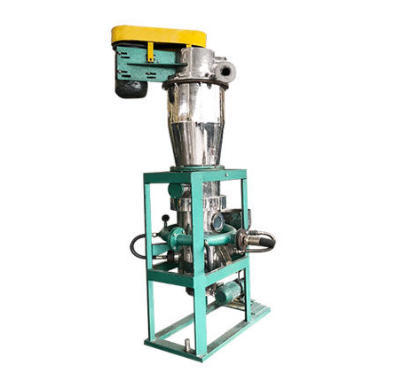

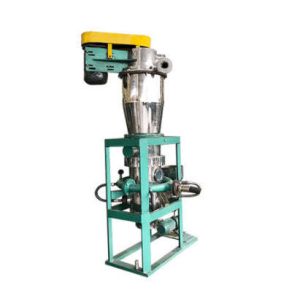

LHL Jet Mill 10-2000kg/h Stainless Steel Waste Processing

Product Description

After the compressed air is frozen, filtered and dried, a supersonic airflow is formed through the nozzle and injected into the crushing chamber, so that the material is fluidized.

The accelerated material meets at the intersection of the jet airflows of several nozzles, resulting in severe collision, friction, Shear to achieve ultra-fine crushing of particles. The crushed material is transported to the impeller classification area by the rising air flow. Under the action of the centrifugal force of the classification wheel and the fan suction, the coarse and fine powder is separated. The coarse powder returns to the crushing room according to its own gravity to continue crushing. The airflow enters the cyclone collector, the fine dust is collected by the bag filter, and the purified gas is discharged by the induced draft fan.

Performance Advantages

Based on the design of traditional fluidized bed pulverizer, combined with our company's unique self-splitting and classification technology, its performance is far superior to domestic and foreign fluidized bed jet mills.

● Low energy consumption, compared with traditional fluidized bed jet mill, it can save 30% energy.

● Built-in self-splitting micro-powder classifier, the size distribution is concentrated, and there are no oversized particles in the finished product.

● The equipment has a compact structure and a small footprint.

● There is no material stored in the crushing box, no dead corners, easy to disassemble and wash, disinfect, convenient to change varieties, in line with GMP requirements.

● Low temperature medium-free crushing, especially suitable for the crushing of low melting point, heat sensitivity, sugar content and volatile materials.

● For inflammable and explosive materials, inert gas can be used as a medium to achieve fully enclosed pulverization, and the inert gas can be recycled, with very low loss.

● The range of crushing particle size is wide, and the particle size of the finished product can be adjusted in the range of 3 ~ 180um; the whole model is available, and the output of 5 ~ 3000kg / h is optional.

● Negative pressure production, no dust pollution, excellent environment.

● High degree of automation, strong stability and easy operation.

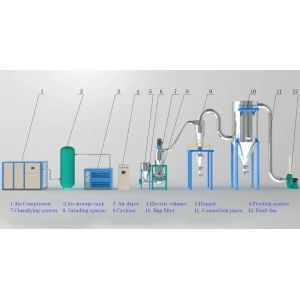

Flow Chart

Technical Details

Model Data	LHL-3	LHL-6	LHL-10	LHL-20	LHL-40	LHL-60	LHL-120
Feed size (Mesh)	≤　20	≤　20	≤　20	≤　20	≤　20	≤　20	≤　20
Fineness(d97=um)	2-150	2-150	2-150	2-150	2-150	2-150	2-150
Capacity (kg/h)	15~100	40~250	90~500	200~1100	500~2500	750~4000	1500~8000
Air consumption(m3/min)	3	6	10	20	40	60	120
Air pressure(MPa)	≥0.8	≥0.8	≥0.8	≥0.8	≥0.8	≥0.8	≥0.8
Installed power (kw)	27.5	53	75	159	300	440	830

Application

It is widely used in chemical industries, mining, abrasive material, refractory material, non-metal mines, metallurgy,building materials, pharmacy, food, pesticide, feedstuff, new materials, environmental protection and other fields.Meanwhile ,it can be used for the ultra fine pulverzing,disintegrating and reinforcing grain for all kinds of dry materials
